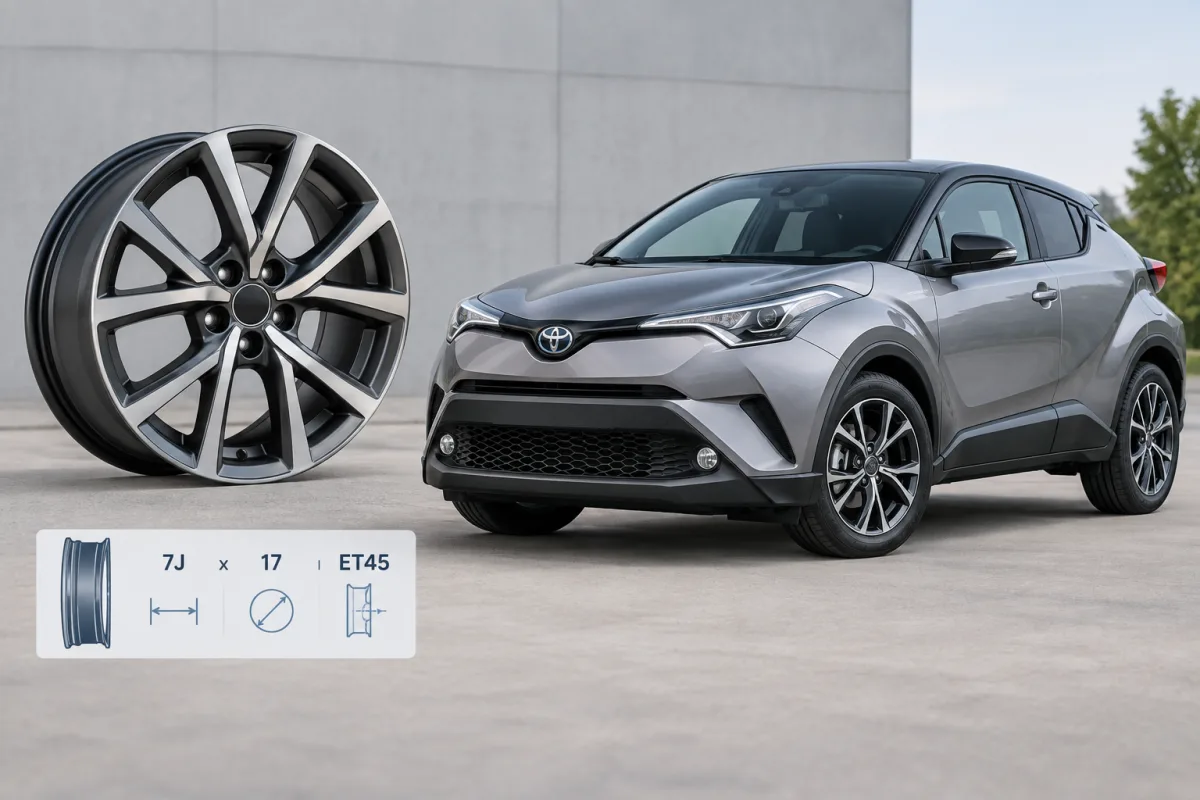

A 7Jx17 ET45 wheel will likely fit a Toyota C-HR, but the marking alone is not enough to confirm compatibility. The wheel must also have the correct bolt pattern, center bore, load rating, lug hardware and sufficient clearance for the brake components.
Standard Toyota C-HR 17-inch wheel specifications
Toyota C-HR models commonly use a factory 17-inch wheel measuring 6.5Jx17 with an ET45 offset. The commonly listed original tyre size for this configuration is 215/60R17.
- Wheel diameter: 17 inches
- Common factory width: 6.5J
- Common factory offset: ET45
- Bolt pattern: 5×114.3
- Center bore: 60.1 mm
How 7Jx17 ET45 compares with the factory wheel
A 7Jx17 wheel is half an inch wider than the commonly used 6.5Jx17 factory wheel. Because both wheels have an ET45 offset, the additional width is distributed approximately equally on both sides. The inner and outer rim edges move outward by about 6.35 mm compared with the factory wheel.
This difference is usually modest, but actual clearance still depends on the wheel design, tyre size, suspension condition and the particular Toyota C-HR version.
Checks required before fitting
Bolt pattern
The wheel must have a 5×114.3 PCD. The 7Jx17 ET45 marking does not state the bolt pattern, so this must be checked separately. A wheel with a different PCD will not fit correctly.
Center bore
The Toyota C-HR commonly uses a 60.1 mm hub. A wheel with a 60.1 mm center bore is a direct match. If the wheel has a larger bore, hub-centric rings can be used to centre it correctly. A bore smaller than 60.1 mm will not fit over the hub without machining.
Brake and suspension clearance
The wheel must clear the brake calipers and suspension components. Identical dimensions can still have different spoke profiles and inner shapes, so the wheel design matters as much as the width and offset.
Load rating and lug hardware
Check that the wheel’s load rating is suitable for the Toyota C-HR. The lug nuts or bolts must also match the wheel’s seat type and thread specifications.
Tyre size
The commonly listed original 17-inch tyre size is 215/60R17, but permitted sizes can vary by model year, trim, engine and sales market. The vehicle documentation should be checked before selecting tyres for a 7J-wide wheel.
Fitment verdict
A 7Jx17 ET45 wheel is probably suitable for a Toyota C-HR because its diameter and offset are close to the commonly listed factory specification. Fitment should be treated as confirmed only when the wheel is 5×114.3, has a 60.1 mm or larger center bore, clears the brakes, uses compatible lug hardware and has an adequate load rating. The exact model year, trim and market specification can affect the final result.
